Single sided ballasted system

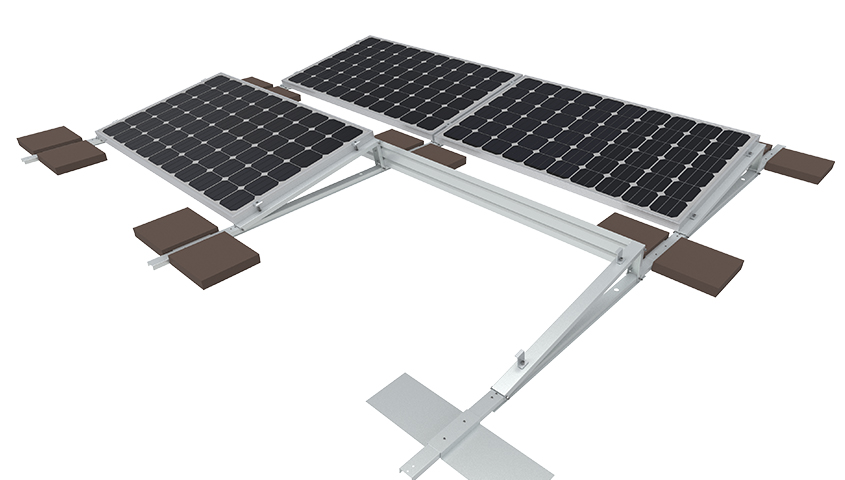

CF101 CM Solar Ballasted System

Smart and safe flat roof solution

Completely innovative component-reduced low ballast unilateral elevation system for variable orientation of south-east to south-west with same yield performance.

Ideal solution for flat roofs with low ballast potential and with or without parapet

Easy for installation with very few highly pre-assembled components.

Installation time optimization with highly pre-assembled components

Available at 10°.12°.15° elevation angle.

Aerodynamically optimized with wind breaker on reverse enabling minimal ballasted weight.

Easy for transportation with foldable triangles saving space.

Components
Data
Installation Notes
Contact supplier

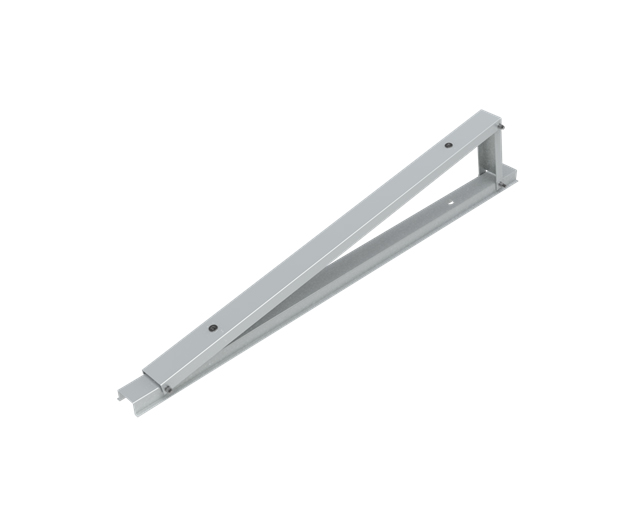

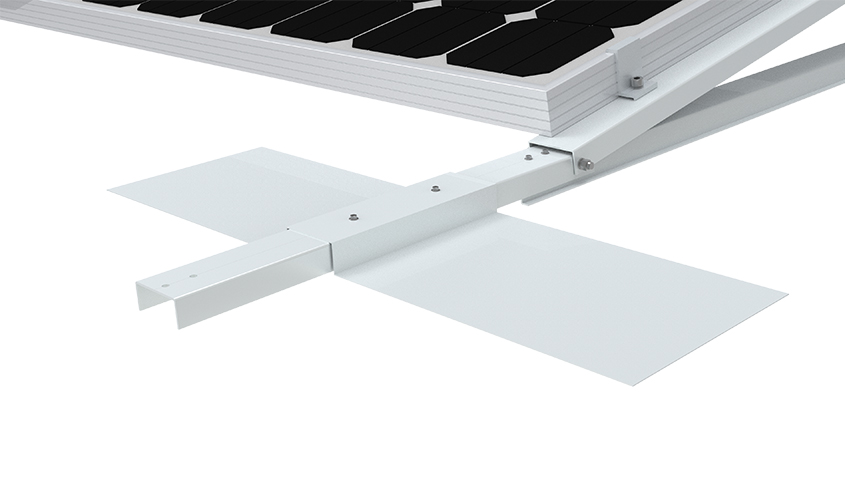

Foldable triangle
Foldable triangle

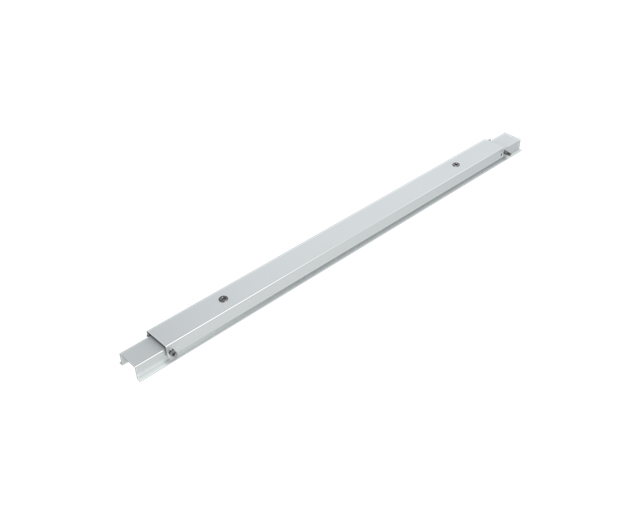

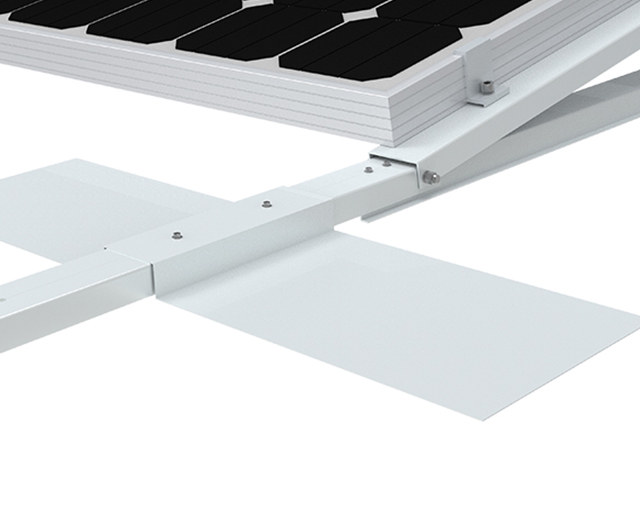

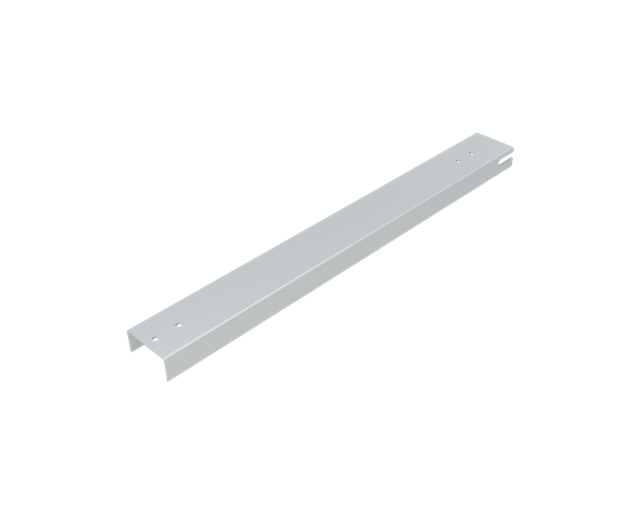

Connection

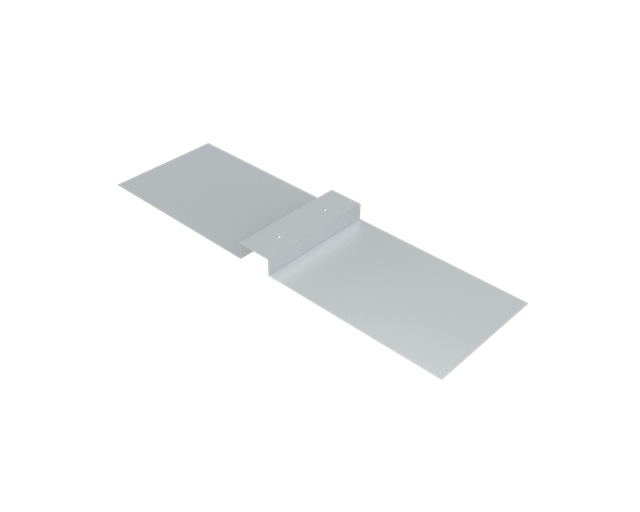

Ballast pan

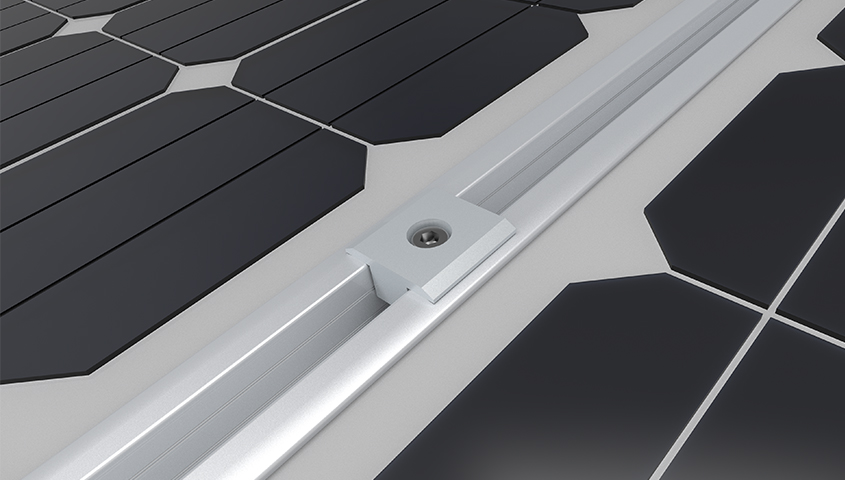

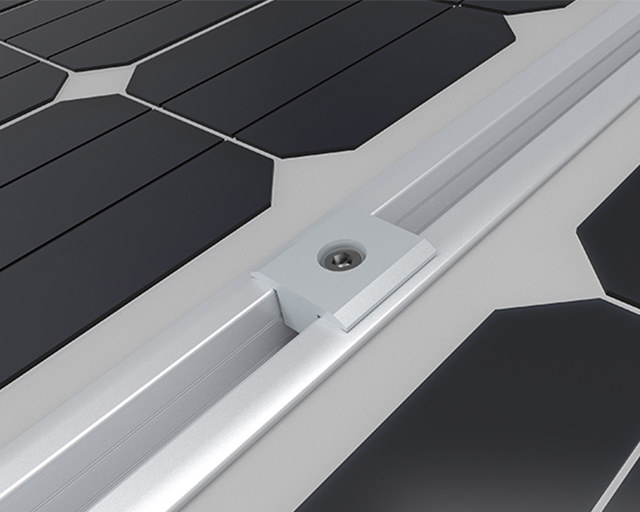

Middle clamp

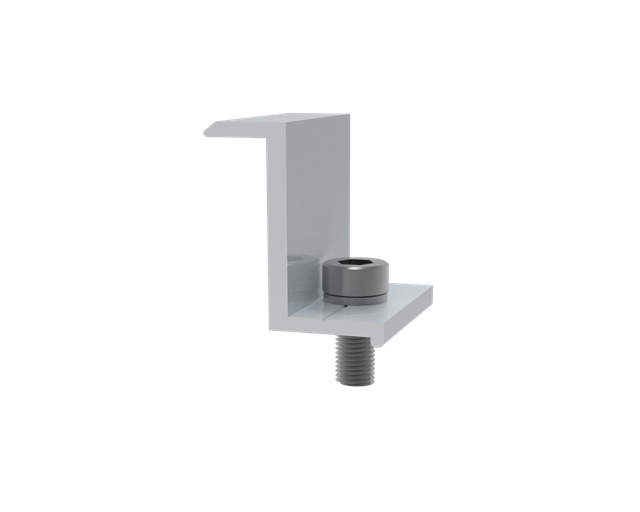

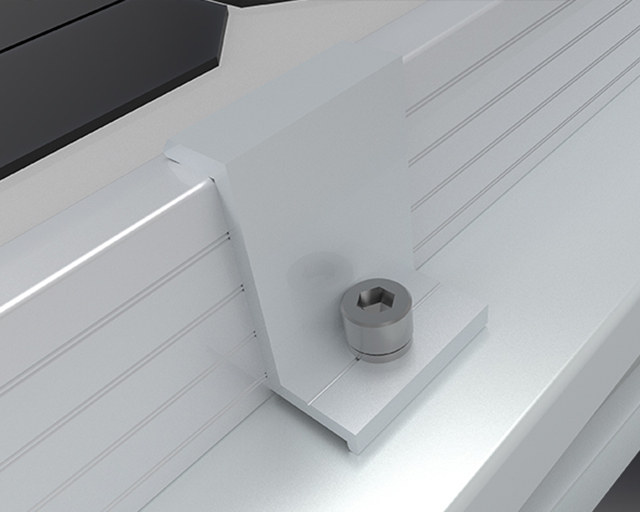

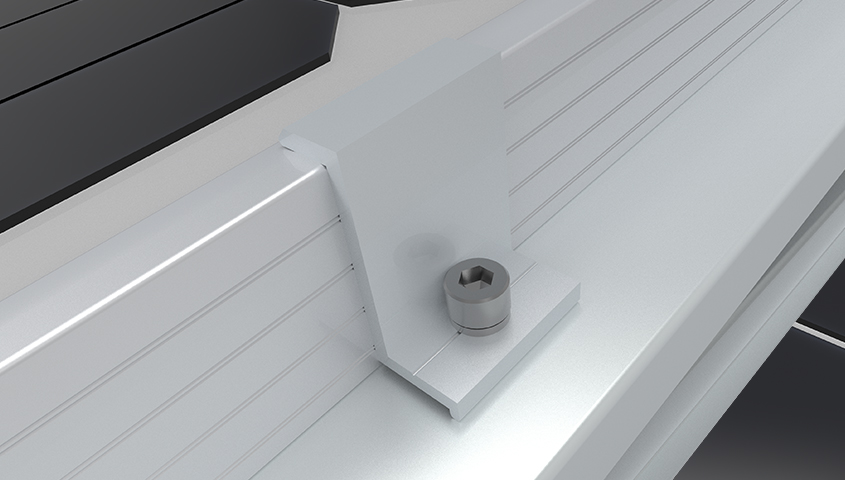

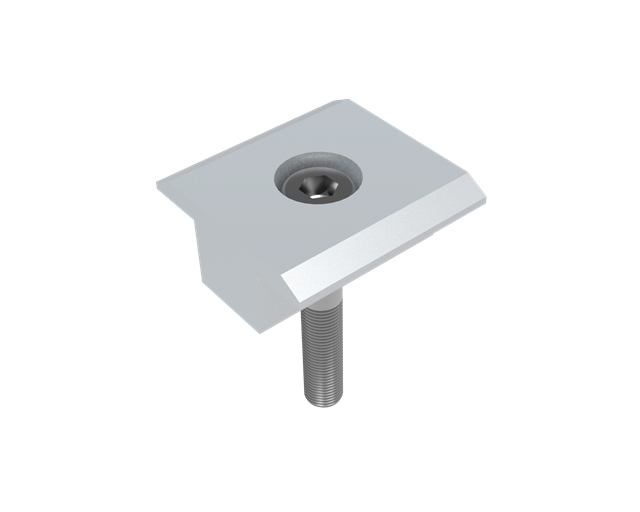

End clamp

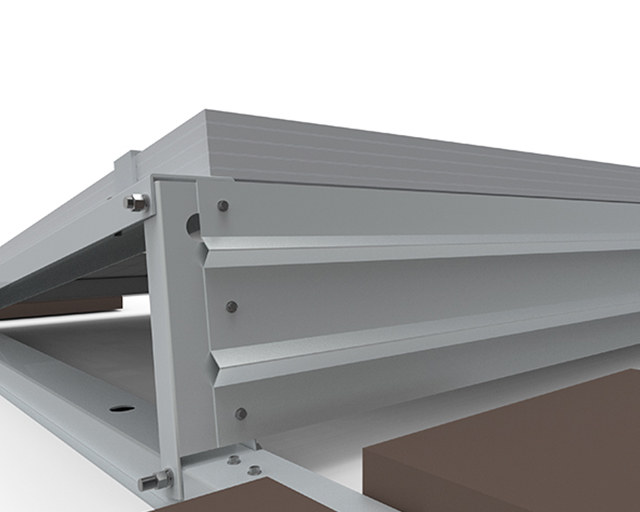

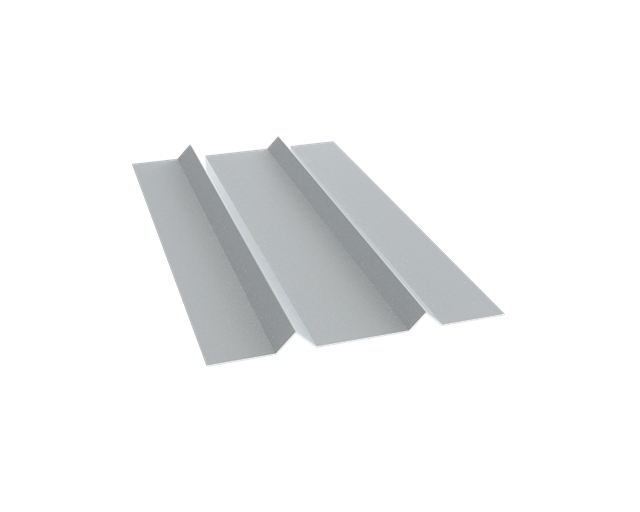

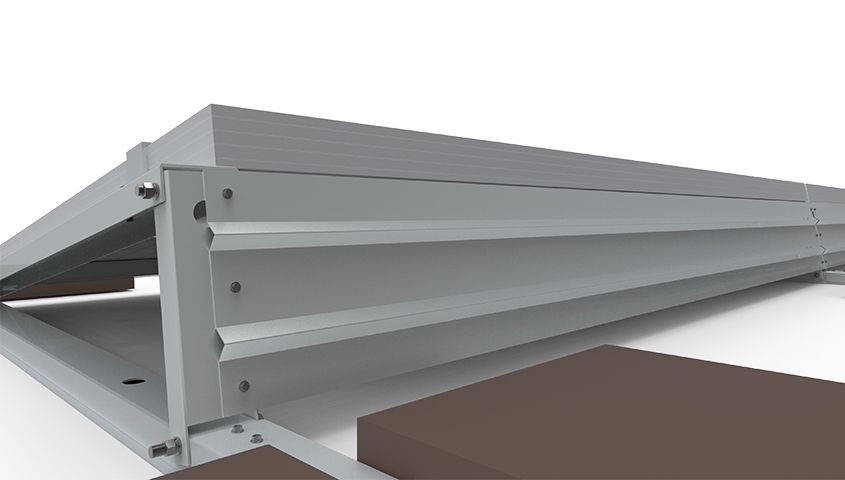

Wind deflector
Scope of applicationFlat roof ≤ 10°with single ply membrane or bituminous roof covering also on concrete graveled or green roofs.
Fastening type/roof fixtureBallasted and no roof penetration for inclination: ≤ 3°
With fixed connection at inclination with preassembled kits
PV modulesPermissible module dimensions (L×W×H): 1448-2150 × 950-1060 × 30-50mm
Clamping at the short module side permitted (see module approvals…)
Module orientationVertical
System orientationSouth-east to South-west
MaterialAluminum ENAW6063-T66 ; Small parts: stainless steel A2-70
Load assumptionDIN EN 1991(Eurocode1)
