Professional Technology

Benefit from our continuous effort to the optimized solution and our several manufacturing bases, our company is to attribute our effort to provide high-quality and economic solar mounting products and bring the added value to our customers.

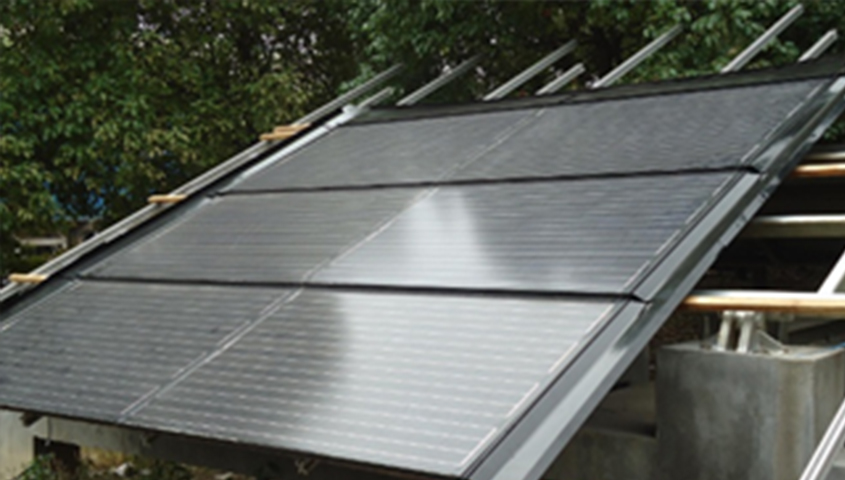

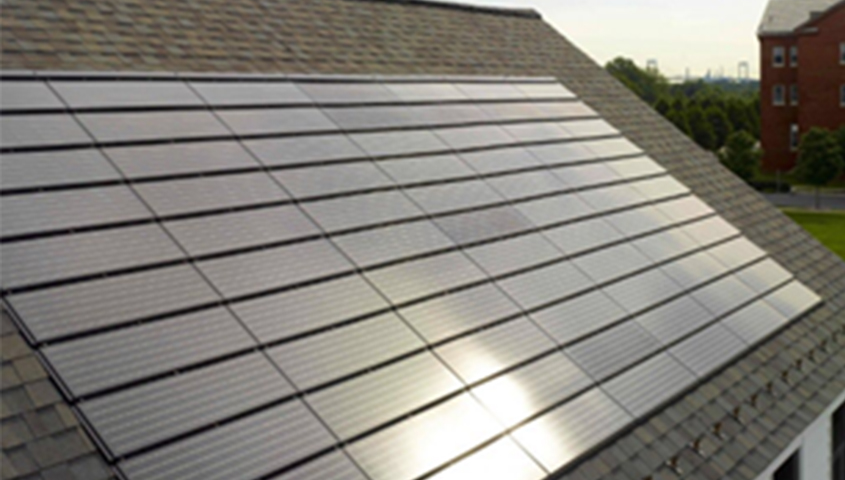

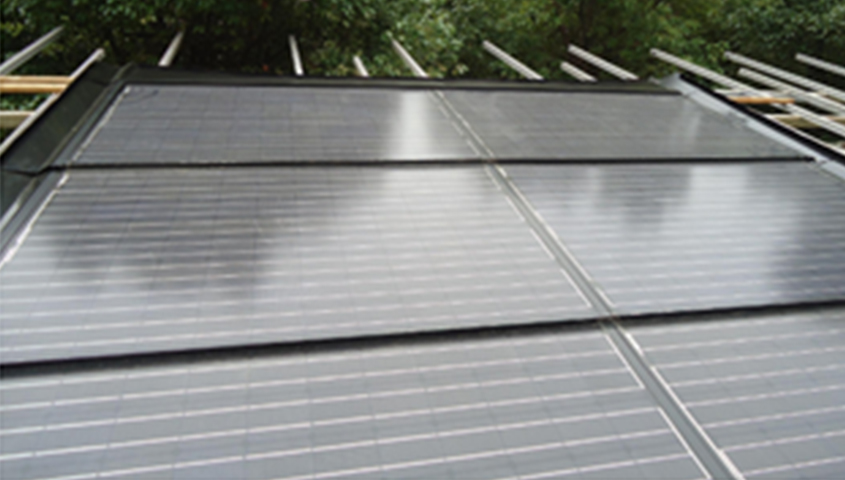

BIPV solar solution

Smart solution for solar Energy

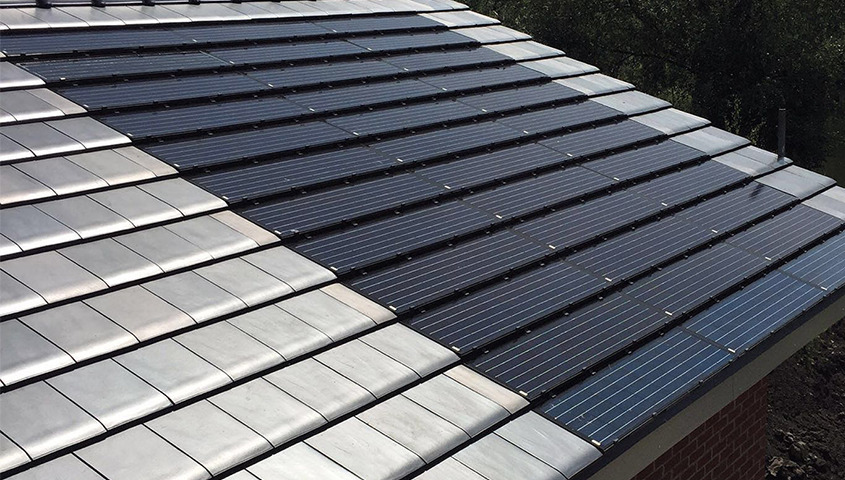

The Planum Photovoltaic Solar System must be installed in a ventilated roof with double strips and sheet waterproof. CM Solar offers all the complements and accessories for a perfect ventilated roof with 360 ° Solutions.

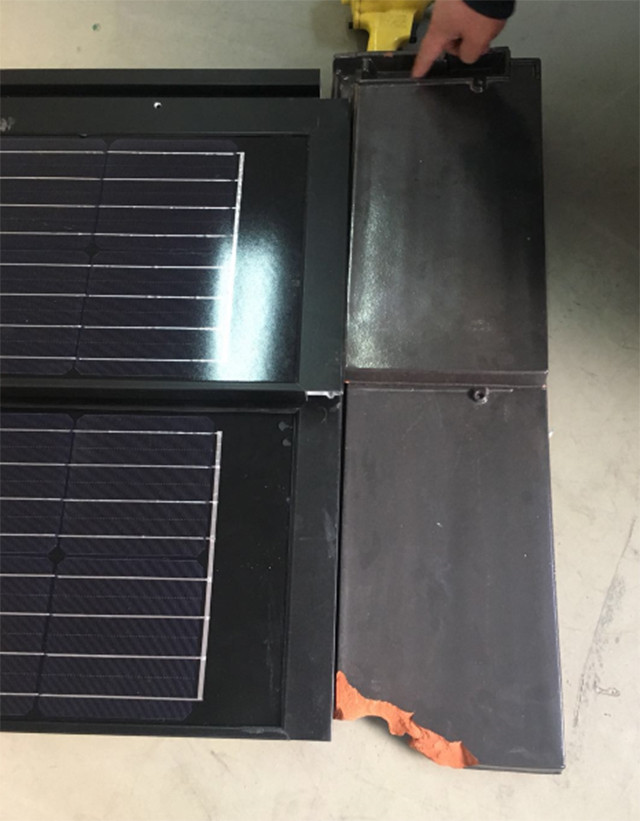

Consult the CM Solar tile installation manual for all the information regarding the installation of ceramic tiles. Both this installation manual and the Solar System installation manual Photovoltaic Planum must be read together.

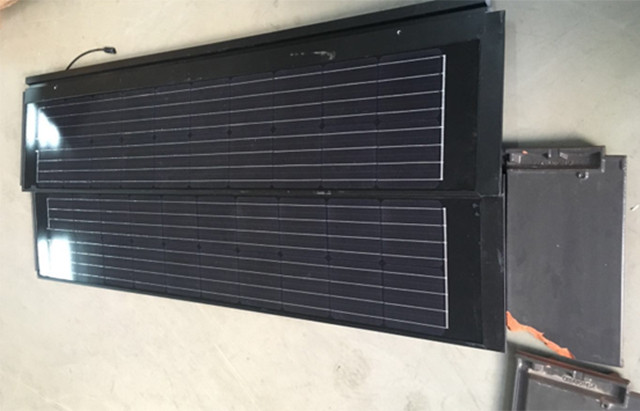

Components
Data
Installation Notes
Contact supplier
TypeCMMST110
Maximum power output（W）110
Tolerance of power output（W）±3%
Open-circuit voltage Voc(V)22.5
Short-circuit current Isc(A)6.79
Optimum operating voltage Vm(V)10
Recommended current Im(A)6.11
Cell efficiency（%）22%
Type diameter and length of cable4mm²，900mm
Quantity of solar cell2*18

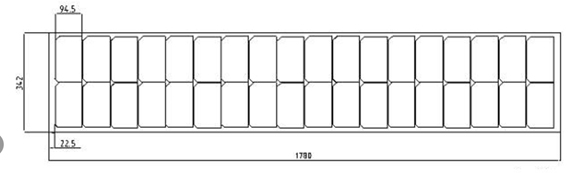

dimension of solar cell(mm)156.75*94.5

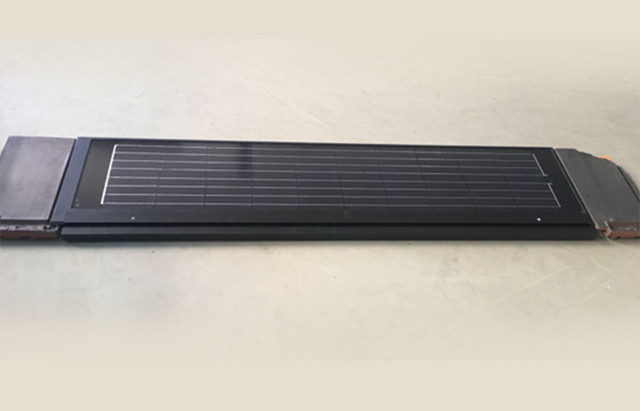

dimension of solar tile(mm)1780*342
Weight(kg)11
Material of back sheetblack back sheet
specification and thickness of glassHigh transparency low iron tempered glass，thickness:3.2mm
Compressive strength>3000N
water permeability<0.5%

Please feel free to contact us for installation manual
